The modern manufacturing floor bears little resemblance to facilities of the past. Especially over the last decade, factory automation systems have evolved in complexity while becoming more compact. Sophisticated networks of interconnected machinery, programmable logic controllers (PLCs), sensors, actuators, and robotic systems are all increasingly common, even for smaller manufacturers and machine shops.
It goes without saying, all of these complex machines and electronics systems require equally complex cable and wiring solutions. Therein lies the challenge for equipment manufacturers and integrators who must design and deploy increasingly compact automation solutions within tight spatial constraints.
At Allwire, we understand that the success of these advanced automation systems depends on more than just intelligent programming and quality machinery.
When you’re installing new factory automation equipment or a custom machine automation setup, the control cable solution must deliver a combination of high reliability, space efficiency, and signal integrity. Otherwise you may find yourself back at square one of the integration process when your equipment doesn’t perform as expected.
The Challenge of Space Efficiency in Modern Automation Systems
Contemporary factory automation installations face an unprecedented spatial puzzle. Modern production facilities are optimizing every square foot of floor space, retrofitting existing structures with new automation equipment, and designing smaller, more agile manufacturing cells. This drive for compactness extends beyond the machinery itself, determining how cables and conduit must be routed, bundled, and managed within complex systems integration packages.
Traditional cable management approaches often assume ample routing paths and generous panel real estate. But today’s automation integrators are working with control panels that measure inches rather than feet, machine bases with limited clearance for cable runs, and tight cable trays where every millimeter matters.
It’s even more of a challenge when engineers must accommodate multiple signal types simultaneously: power circuits, control signals, data communication lines, sensor inputs, and safety-critical commands, all within a footprint designed to minimize material costs and manufacturing time.
For manufacturers integrating new factory automation systems, this spatial constraint isn’t merely a convenience issue. Poorly routed or inadequately protected cables become a liability, introducing maintenance headaches, signal degradation, and potential safety concerns.
In other words, your cable infrastructure must be thoughtfully designed to accommodate the compact geometry of modern automation equipment without sacrificing performance or reliability.
Understanding Multi-Conductor Cable Specifications for Automation

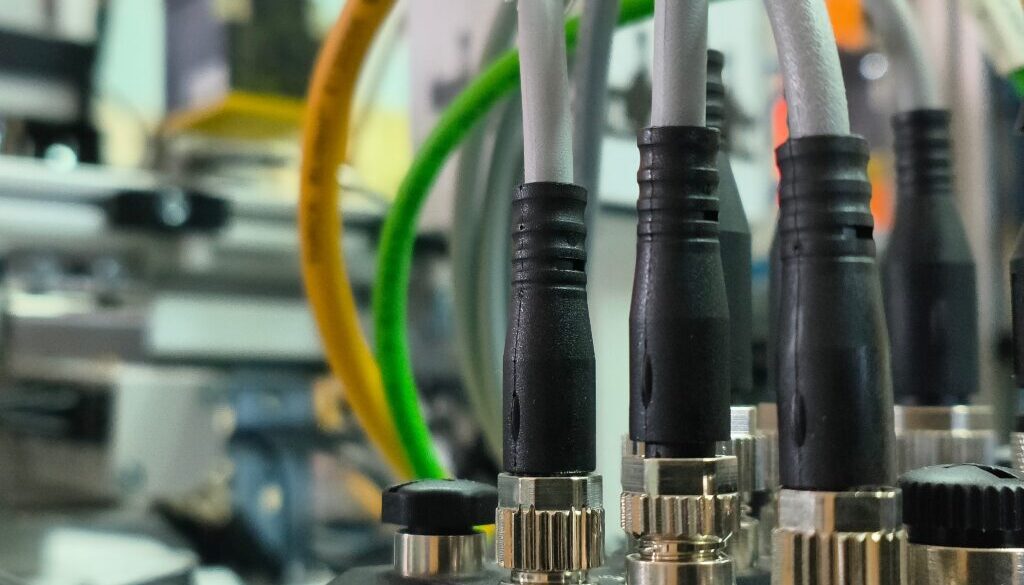

When designing control cable solutions for compact automation systems, several critical specifications come into play. Multi-conductor cables offer distinct advantages for automation applications where bundling different signal types into organized, space-efficient packages is essential.
The conductor count in a multi-conductor cable directly influences its overall diameter and jacket profile. A carefully selected conductor configuration allows system designers to consolidate multiple signal paths into a single, more efficiently routable cable assembly. Rather than managing six separate two-conductor cables running parallel through a machine base, a single 12-conductor cable can achieve the same functional connectivity while reducing clutter and simplifying maintenance.
Shielding architecture represents another critical design consideration. Automation systems operate in electromagnetically noisy environments, surrounded by variable frequency drives, motor controllers, welding equipment, and high-powered transformers. Without proper shielding, control signal cables can pick up electromagnetic interference (EMI) that corrupts data transmission or introduces signal noise that causes erratic equipment behavior.
Allwire manufactures both shielded and unshielded multi-conductor cables, with shielded options featuring foil or braid constructions that protect sensitive control signals from external interference.
The insulation material and jacket composition of a cable directly determine its flexibility, environmental resistance, and durability in the application environment. Automation systems installed in metal fabrication facilities may operate in metalworking fluid-saturated environments, while renewable energy automation systems encounter UV exposure, temperature extremes, and moisture challenges. The cable jacket must provide appropriate resistance to oils, chemicals, temperature, and mechanical wear without compromising the flexibility required for complex routing in tight spaces.
Addressing Your Retrofit Challenges
Not all automation system installations occur in purpose-built facilities. Many manufacturers retrofit new factory automation equipment into existing production spaces—a scenario that introduces additional complexity into cable routing and management. Existing infrastructure, power distribution points, and spatial limitations often impose constraints that didn’t exist in original equipment design.
Retrofit automation installations frequently benefit significantly from custom multi-conductor cable solutions. Rather than attempting to fit standard cable products into spaces designed around legacy equipment, custom cables can be engineered to the exact spatial and functional requirements of the retrofitted automation system.
Reduced-diameter multi-conductor cables can navigate existing cable trays and conduit. Shielded designs protect new control signals from interference generated by adjacent legacy equipment. The flexibility of custom cable design enables automation manufacturers to successfully deploy advanced systems in spaces and circumstances that would be problematic with standard off-the-shelf products.
Custom Cable Design for Factory Automation Integration
One of the most significant advantages of working with an established cable manufacturer is access to custom design capabilities tailored to specific automation application requirements. Modern manufacturers often require a precisely engineered solution matched to their unique installation challenges.
At Allwire, we work directly with equipment manufacturers and automation integrators to develop cable solutions that address their specific constraints.
This collaboration might involve designing a multi-conductor cable with a reduced overall diameter to fit through narrow cable channels in a compact automation system. It might require incorporating individually shielded pairs within the multi-conductor bundle to isolate critical control signals from data communication lines operating in the same cable jacket. Or it might demand environmental specifications, such as oil-resistant jackets or high-temperature insulation, that support the cable’s operation in the specific manufacturing environment where the automation system will be deployed.
In every case, close collaboration between our experts and your team results in reliable, optimized cable and conduit solutions engineered for the specific needs of your equipment.
